G.C. Number 41 202 15

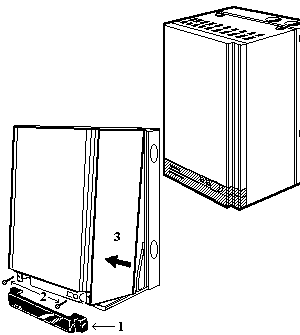

Case removal
Remove plastic Boiler Plinth (1).
Remove two screws (2), hinge forward the case and lift off (3).
Put case in a safe position.
NOTE:
This boiler has no sight glass so the flame cannot be observed.
The boiler cannot be fired with the combustion chamber front removed.
It will be necessary to attach the U-gauge to the boiler to observe gas pressure at the burner during boiler operation.
| Isolate Mains Power to appliance as per TOP's P4 |
Case removal
Remove plastic Boiler Plinth (1).
Remove two screws (2), hinge forward the case and lift off (3).
Put case in a safe position.
NOTE:
This boiler has no sight glass so the flame cannot be observed.
The boiler cannot be fired with the combustion chamber front removed.
It will be necessary to attach the U-gauge to the boiler to observe gas pressure at the burner during boiler operation.
Isolate as per TOPs P4
and refit as necessary
