Observation:
Unless stated otherwise in "Set appliance state" the CH temperature needs to be set to MAX - 80°C when following this diagnostic model.

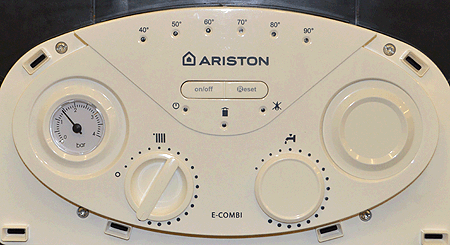

USER DISPLAY GUIDE
Unless stated otherwise in "Set appliance state" the CH temperature needs to be set to MAX - 80°C when following this diagnostic model.
Note: Wiring harness colours may change but test points will remain the same.
CH Temperature control knob, set CH temperature to MAX 80°C, turn control knob clockwise until 80°C LED illuminates.
Manual RESET button - press once then release.
Power button - LED illuminates green when ON.
