Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
CH Demand
Selector Switch to Hot Water and Heating
Turn CH thermostat up to MAX

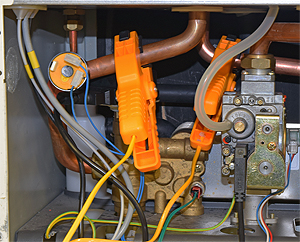

Attach Performance Tester Temperature Clamps
on flow and return pipes as shown
Turn CH thermostat up to MAX
Attach Performance Tester Temperature Clamps
on flow and return pipes as shown
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Allow boiler and system to heat.
Measure the difference in temperature between the flow and return pipes.
Is the differential approx. 20°C or lower?
Note:
Differential may be higher on initial start-up, allow boiler to run until return pipe starts to heat or the boiler shuts down before selecting an option. Turning off some radiators may reduce time taken for this test.
Measure the difference in temperature between the flow and return pipes.
Is the differential approx. 20°C or lower?
Note:
Differential may be higher on initial start-up, allow boiler to run until return pipe starts to heat or the boiler shuts down before selecting an option. Turning off some radiators may reduce time taken for this test.
