Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Observation:

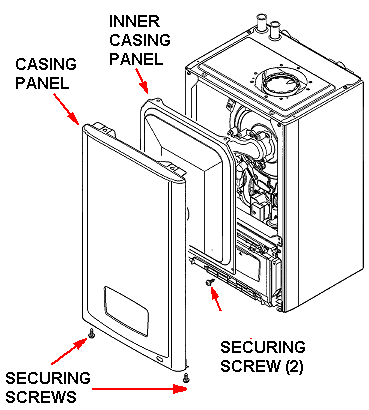

Case Removal
Casing Panel
Remove the 2 securing screws from the bottom corners of the boiler and lift off the outer case.
Inner Casing Panel
Remove the 2 securing screws from the bottom of the inner casing panel and then lift off the casing.
Casing Panel
Remove the 2 securing screws from the bottom corners of the boiler and lift off the outer case.
Inner Casing Panel
Remove the 2 securing screws from the bottom of the inner casing panel and then lift off the casing.
