Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
CASE REMOVAL

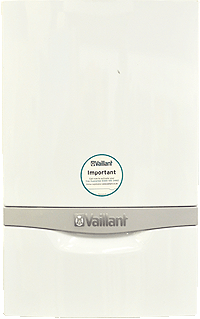

FRONT PANEL REMOVAL
1. Undo the two screws on the underside of the front panel.
2. Remove front panel by pulling down and forward at base to release the clip, then lift up and away.
1. Undo the two screws on the underside of the front panel.
2. Remove front panel by pulling down and forward at base to release the clip, then lift up and away.
ACCESS TO PCB
Release two top clips A and B for access to the PCB
Release two top clips A and B for access to the PCB
A
B
ACCESS TO LOWER BOILER
Pull PCB housing forward and lower to service position
Pull PCB housing forward and lower to service position
