Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
CH Demand

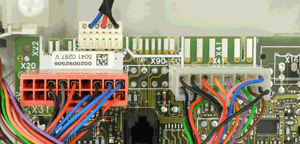

Remove connector X40 from the PCB and make safe
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Does sparking occur with X40 removed from the PCB?
Note:
If sparking occurs with X40 removed from the PCB, the condensate connector MUST be refitted after this test and the fault with the condensate pump MUST be rectified as it is not acceptable to leave X40 disconnected.
Note:
If sparking occurs with X40 removed from the PCB, the condensate connector MUST be refitted after this test and the fault with the condensate pump MUST be rectified as it is not acceptable to leave X40 disconnected.
Isolate as per TOPs P4
and refit as necessary
