XSol Diagnostic System

FUSE F5

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Set Multimeter to Resistance

Measurement:

Remove Fuse F5 from holder on Motherboard and check continuity for short circuit.

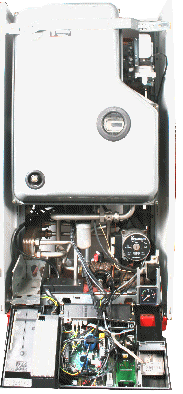

vl 236eh combicompact main showing pcb 1.gif
