Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Measurement:
Note: The appearance and colour of the facia may differ but the operation of it remains the same.
CASE REMOVAL
Note: The appearance and colour of the facia may differ but the operation of it remains the same.
FRONT PANEL REMOVAL
1. Undo the two screws on the underside of the front panel.
2. Remove front panel by pulling down and forward at base to release the clip, then lift up and away.
1. Undo the two screws on the underside of the front panel.
2. Remove front panel by pulling down and forward at base to release the clip, then lift up and away.
ACCESS TO PCB
Release two top clips A and B for access to the PCB.
Release two top clips A and B for access to the PCB.
A
B

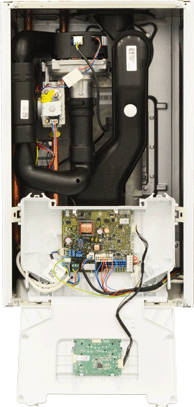

ACCESS TO LOWER BOILER
Pull PCB housing forward and lower to service position.
Pull PCB housing forward and lower to service position.
