Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |

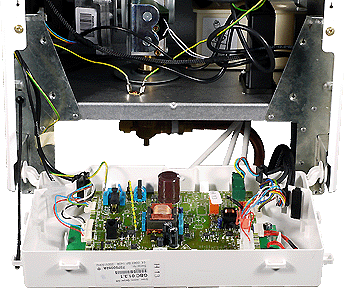

Remove connector X21 from the PCB
Measurement:
Test 1:
Measure the resistance between the brown and blue wires.
Expect a resistance of 1 Mohm or greater.
Test 2:
Measure the resistance between the brown and earth wires.
Expect a resistance of approximately 0.8 Mohm or greater.
Are the resistances measured as expected?
Measure the resistance between the brown and blue wires.
Expect a resistance of 1 Mohm or greater.
Test 2:
Measure the resistance between the brown and earth wires.
Expect a resistance of approximately 0.8 Mohm or greater.
Are the resistances measured as expected?

Isolate as per TOPs P4
and refit as necessary
