Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Measurement:

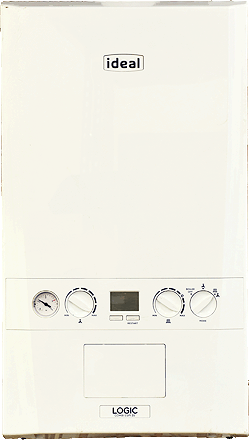

To remove the front cover from the appliance:
1. Locate and loosen the two screws at the bottom of the boiler.
2. Disengage the two clips at the lower corners of the front case.

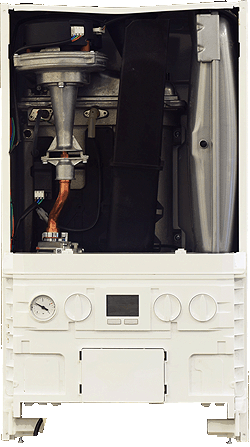

3. Pull the front case slightly forward from the bottom and lift to unhook from the top.
NOTE:
This model assumes appliance is operating on natural gas. If it has been converted to LPG refer to ADAPT for gas pressures and potential differences in part numbers.
1. Locate and loosen the two screws at the bottom of the boiler.
2. Disengage the two clips at the lower corners of the front case.
3. Pull the front case slightly forward from the bottom and lift to unhook from the top.
NOTE:
This model assumes appliance is operating on natural gas. If it has been converted to LPG refer to ADAPT for gas pressures and potential differences in part numbers.
