Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |

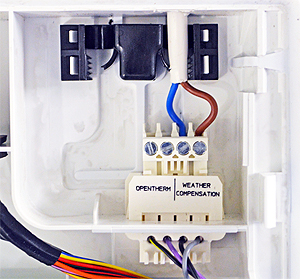

Remove the wires (or link) at terminals marked "OPENTHERM"
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Does the boiler still fire with no demand?
Notes:
1. Opentherm connections will be a link unless boiler connected
to an Opentherm system. Test is the same whichever is fitted.
2. Wires for weather compensation must stay connected.
Notes:
1. Opentherm connections will be a link unless boiler connected
to an Opentherm system. Test is the same whichever is fitted.
2. Wires for weather compensation must stay connected.
Isolate as per TOPs P4
and refit as necessary
